Victron GX Touch 50 - Companion to GX Cerbo MK2

$245.65

GX Touch 50

Panels & System Monitoring

The GX Touch 50 is the display accessory for our Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

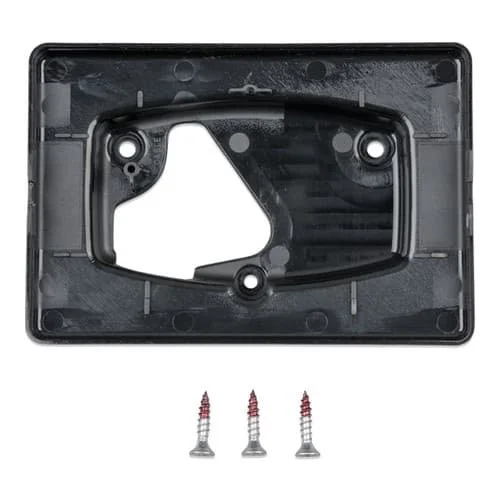

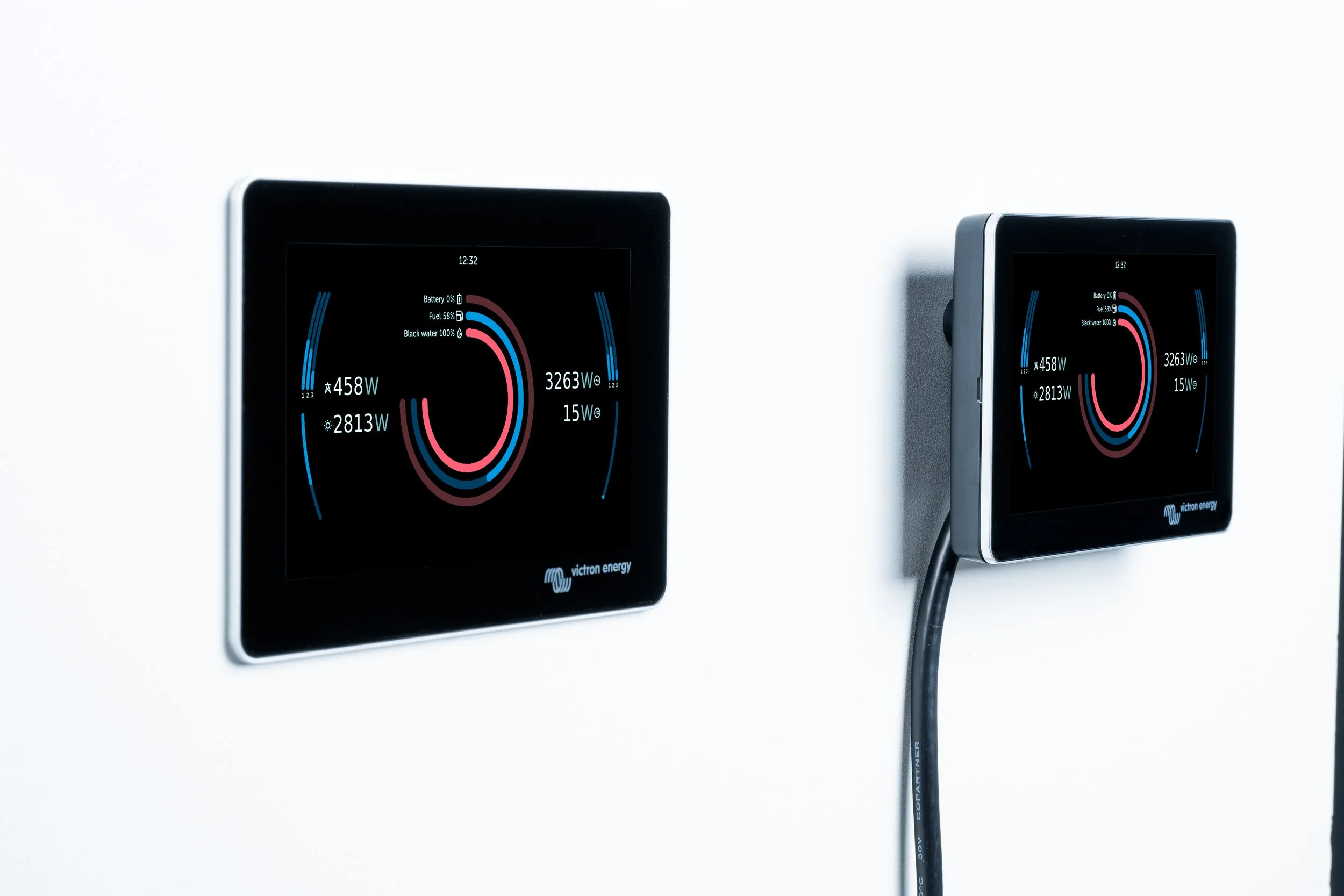

Simple Surface or Recessed Mounting

The GX Touch is optimized to more than meet the standards of installer professionals. On the Surface Mount, the screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.  Or one can do a recessed mount. We offer both options.

The GX Touch 50 is a companion to the Cerbo GX, the all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way

Style:

GX Touch 50

Panels & System Monitoring

The GX Touch 50 is the display accessory for our Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple Surface or Recessed Mounting

The GX Touch is optimized to more than meet the standards of installer professionals. On the Surface Mount, the screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.  Or one can do a recessed mount. We offer both options.

The GX Touch 50 is a companion to the Cerbo GX, the all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way

Perfect Monitoring & Control

Instantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Ekrano GX turns any power challenge into an effortless experience.

Expand Your View

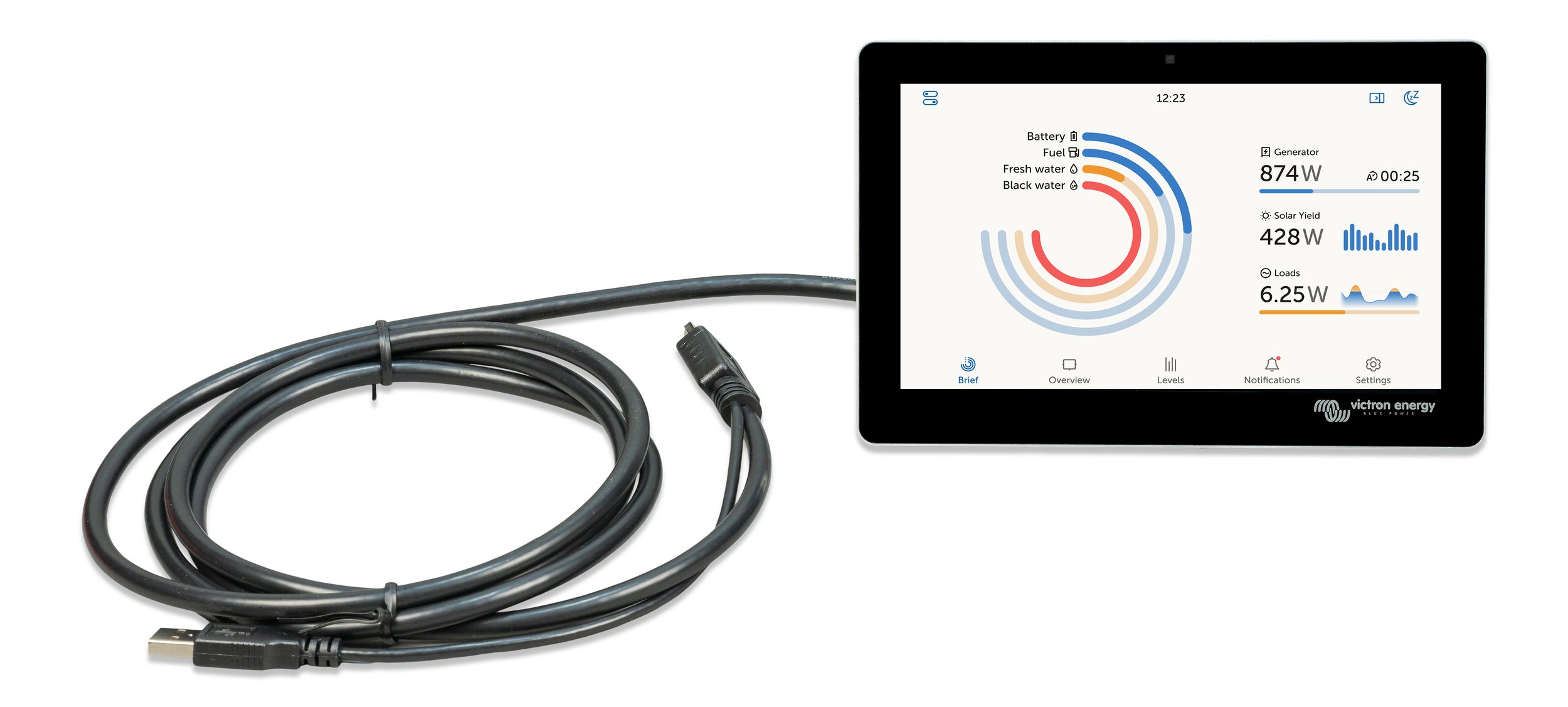

The integrated 7-inch touchscreen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim waterproof design offers a lot of flexibility in designing a crisp and clean dashboard. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use.

Simple Mounting & Configuration

The Ekrano GX is optimized for flush panel or blind hole mounting and has all the necessary mounting material supplied. Screw-on terminal blocks keep everything securely in place.

Outsmart Any Power Challenge

The Ekrano GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Offgrid & Backup, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few…

Specifications:

  • Remote Console: Yes

  • Buzzer: Yes

  • VE.Direct ports (always isolated): 3

  • VE.Bus (always isolated): 2 paralleled RJ45 sockets

  • VE.Can: Yes, VE.Can 1 isolated & VE.Can 2 non-isolated

  • USB: 3 USB Host ports

  • Ethernet: 10/100 RJ45 socket - isolated except for shield

  • WiFi: Built-in

  • Bluetooth Smart: Yes

  • Micro SDcard slot: SDHC cards up to max. of 32GB (5)

  • Second CAN-bus port (BMS-Can): Yes - see VE.Can

  • BMS-Can port: No

  • Built-in RS485: No

  • Programmable Relay: 2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC

  • Resistive Tank Level Inputs: 4

  • Temperature Sense Inputs: 4

  • Same as part# BPP900450110 other than Country of Origin

  • Digital Inputs: 4

Performance Specifications:

  • CPU: Dual-core

  • RAM: 1GB

  • Max. VE.Direct Devices: 15

Other Specifications:

  • Supply Voltage: 8 - 70 VDC

  • Power Draw: 2,5 to 5 W

  • Mounting: Wall or DIN rail (35mm)

  • Outer Dimensions  (H x W x D): 478 x 154 x 48 mm

  • Operating Temperature: -20 to +50 degrees C

  • Battery Backup Clock: Yes

  • 5V Output: No

Standards:

  • Safety: IEC 62368-1

  • EMC: EN 301489-1, EN301489-17

  • Automotive: ECE R10-6
